David Clark M-7/DC Microphone at a Glance
Noise-canceling electret replacement microphone for compatible wire-boom aviation headsets and professionally configured flight helmet communication systems.
- Manufacturer: David Clark
- Model: M-7/DC
- Manufacturer Part Number: 09168P-31
- Microphone Type: Electret
- Noise Canceling: Yes
- Boom Compatibility: Designed for compatible wire booms
- Electrical Requirement: Requires a compatible communication circuit that supplies DC bias voltage
David Clark M-7/DC for Aviation and Flight Helmet Communications
The David Clark M-7/DC is a noise-canceling electret microphone designed for clear voice transmission in compatible aviation communication systems. It is designed for compatible wire-style microphone booms and may be used as a replacement microphone in properly configured aviation headsets and flight helmet communication systems.
In a flight helmet, the microphone is only one part of the communications package. The microphone, boom, contacts, internal wiring, communication cord, connector, aircraft intercom, and radio system must all be electrically and mechanically compatible.
The M-7/DC can replace certain carbon and amplified dynamic microphone configurations when the communication circuit is electrically compatible. Compatibility should be confirmed before changing microphone types.
Before Installing an M-7/DC in a Flight Helmet
Do not choose a replacement microphone based only on the helmet brand or the physical appearance of the existing microphone. Flight helmet communication systems can be configured with different microphone technologies, wiring, cords, plugs, and aircraft interfaces.
Identify the microphone: Confirm that the existing microphone is an M-7/DC or an approved electrically compatible replacement.

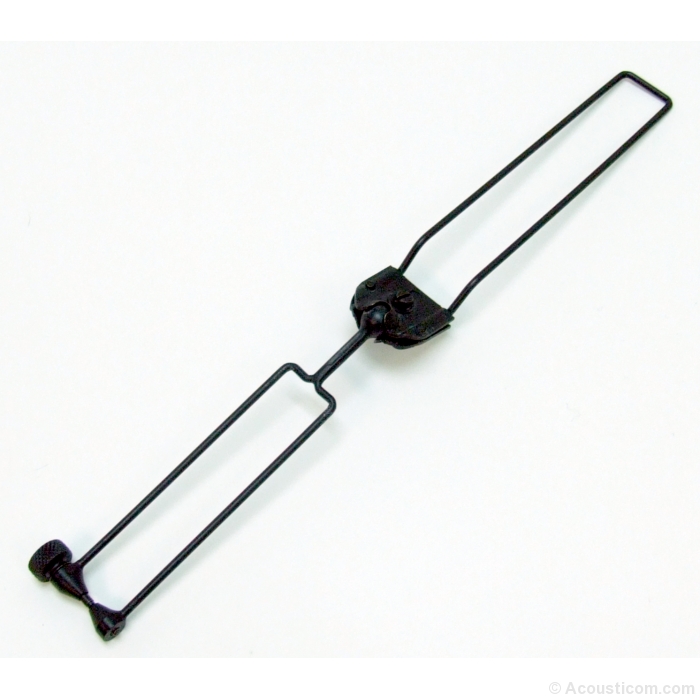

Check the boom: The M-7/DC is designed for a compatible wire-style microphone boom.
Check the electrical circuit: The communication system must provide the DC bias voltage required by the electret microphone.
Check the entire communication path: The microphone contacts, cord, helmet wiring, connector, aircraft intercom, and radio configuration must be compatible.
Important Compatibility Note: The M-7/DC requires a communication circuit that supplies DC bias voltage. It will not operate correctly in a circuit that does not provide the required voltage.
Where the M-7/DC May Be Used
The M-7/DC may be appropriate when repairing or servicing an aviation communication system that is already configured for this microphone type.
- Compatible David Clark wire-boom aviation headsets
- Flight helmets already equipped with an M-7/DC microphone
- Civilian aviation communication systems that provide the required microphone DC bias
- Professionally configured flight helmet communication installations
- Helmet repair or refurbishment where an M-7/DC is the correct replacement
- Systems where the existing boom, cord, mounting arrangement, and electrical configuration are compatible
These are application examples rather than a universal fitment list. Always confirm the exact headset or helmet communication configuration before ordering.
M-7/DC Compatibility Checklist
| What to Check | What the M-7/DC Requires |
|---|
| Current Microphone | Confirm M-7/DC or an approved electrically compatible microphone configuration. |
| Microphone Boom | Compatible wire-style microphone boom. |
| Electrical Circuit | Communication circuit capable of supplying the required DC bias voltage. |
| Contacts and Cord | Contacts and microphone cord must match the boom and headset or helmet wiring. |
| Aircraft Communication System | Confirm compatibility with the aircraft intercom and radio system. |
Helmet or headset brand alone does not establish compatibility. The exact communication configuration must be checked.
Understanding the M-7/DC Electret Microphone
The M-7/DC is an electret microphone. Unlike microphone types designed for different electrical systems, an electret microphone requires a compatible powered communication circuit.
Because of this electrical requirement, the M-7/DC should not be treated as a universal replacement for microphones found in military, legacy, or differently configured aviation communication systems.
When changing between microphone system types, professional evaluation may be required to determine whether wiring, connectors, the boom, or other communication components also need to be changed.
Is the M-7/DC the Same as the M-7A?
No. David Clark identifies the M-7/DC and M-7A as separate microphone models with separate manufacturer part numbers.
If your headset or flight helmet specifies an M-7/DC, order the microphone identified for that communication configuration rather than assuming another David Clark microphone is interchangeable.
Replacing a Microphone vs. Troubleshooting the Helmet
A damaged or worn microphone can cause communication problems, but the microphone is not the only component that can affect transmitted audio in a flight helmet.
- M-7/DC microphone
- Wire boom and microphone contacts
- Helmet or headset wiring

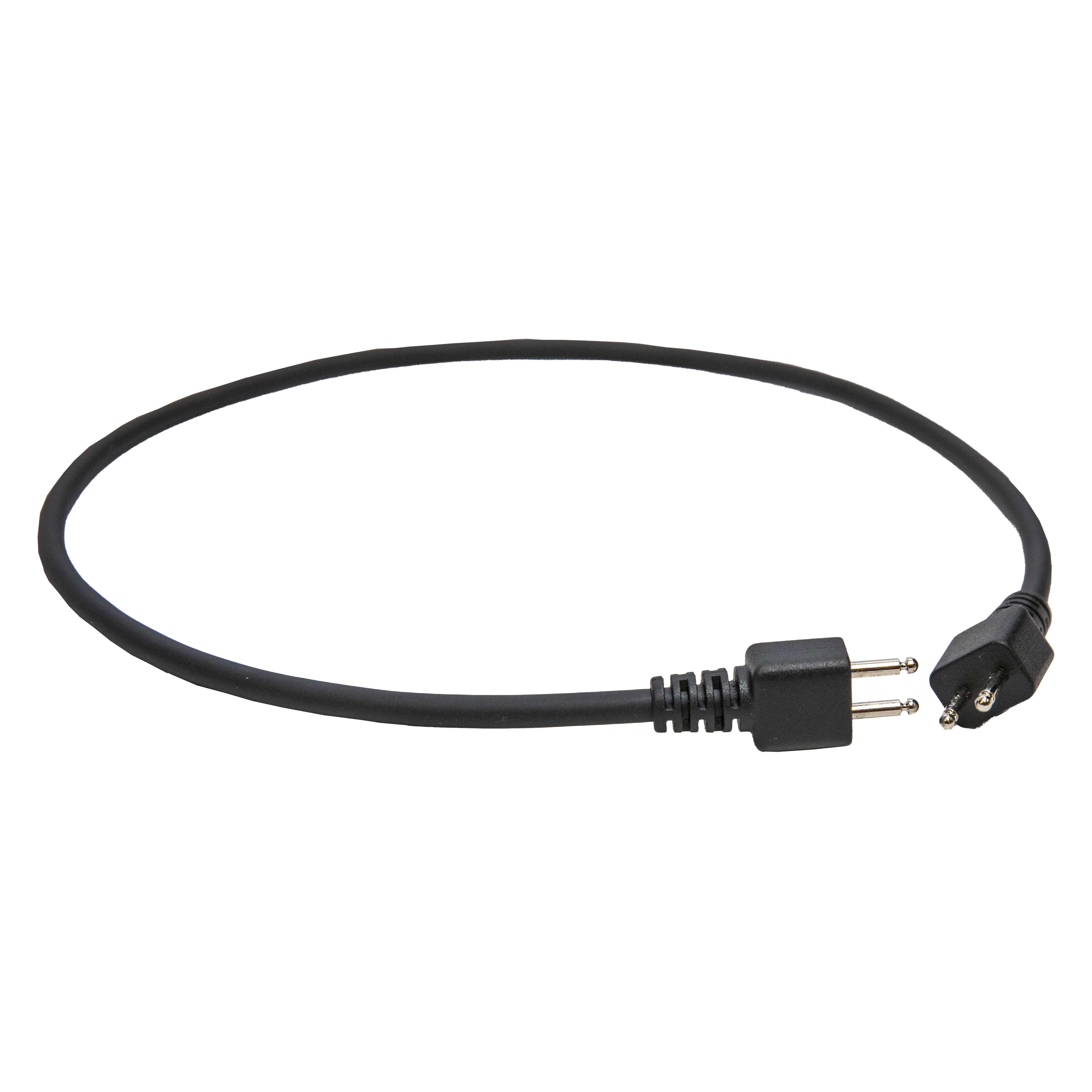

- Microphone cord
- Main communication cord and connectors
- Aircraft intercom and radio configuration
If the cause of a communication problem is uncertain, inspecting the entire system can help determine whether the microphone actually requires replacement.
What Is Included?
- One David Clark M-7/DC electret microphone
- David Clark manufacturer part number 09168P-31

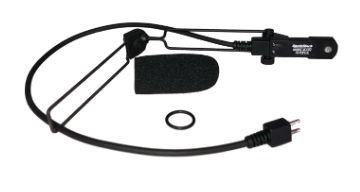

The microphone boom, microphone cord, wind cover, mounting hardware, earphones, and main communication cord are not included unless purchased separately.
Installation and Microphone Positioning
Correct microphone placement is important for clear transmission and effective noise cancellation. Position the microphone close to the mouth and make sure the speaking side is oriented correctly.
Professional installation is recommended when the headset or flight helmet requires wiring changes, connector replacement, boom modification, soldering, or an impedance conversion.
Flight Helmet Communication Support from Helicopter Helmet
When a communication issue involves more than the microphone itself, correctly identifying the complete helmet system becomes especially important. Helicopter Helmet supports flight helmet parts, repair, and communication-system service for aviation users.
- Flight helmet repair and communication-system support
- Help identifying compatible microphones, booms, cords, and covers
- Flight helmet inspection, repair, and component installation
- Support for civilian, military, public-safety, and commercial aviation operators
David Clark M-7/DC Flight Helmet FAQs
Can the M-7/DC be used in a flight helmet?
Yes, when the helmet is professionally configured with a compatible wire boom, microphone connection, wiring, cord, and electrical circuit that supplies the required DC bias voltage.
How do I know if my helmet needs an M-7/DC?
Confirm the existing microphone model and the helmet's communication configuration. If the existing microphone is identified as an M-7/DC, manufacturer part number 09168P-31, replacing it with the same model is the clearest identification method.
Does the M-7/DC require power from the communication system?
Yes. The M-7/DC requires a compatible communication circuit that supplies DC bias voltage. It will not operate correctly in a circuit that does not provide the required voltage.
Can I install the M-7/DC on any microphone boom?
No. The M-7/DC is designed for compatible wire-style microphone booms. The boom, microphone contacts, cord, and communication wiring must match the intended installation.
Is the M-7/DC a military low-impedance microphone?
No. The M-7/DC is an electret microphone and should not be treated as a direct replacement for a low-impedance dynamic military microphone such as an M-87 or M-2. A communication conversion may be required when changing between microphone system types.
Is the David Clark M-7/DC the same as the M-7A?
No. David Clark identifies the M-7/DC and M-7A as separate microphone models with separate manufacturer part numbers. Use the microphone specified for the headset or flight helmet communication configuration.
Does this M-7/DC include the microphone boom?
No. This listing is for the M-7/DC replacement microphone only. The boom, microphone cord, wind cover, mounting hardware, earphones, and main communication cord are separate components.
What if I am not sure whether the microphone is causing my communication problem?
The microphone is only one part of the communication system. The boom, contacts, wiring, cords, connectors, intercom, and aircraft radio configuration may also need to be checked before replacing the microphone.
